Full featured top mount and side mount controls for a variety of electric propulsion applications.
Commercial Grade Construction
Designed to completely protect control head from external water ingress and suitable for extreme and rugged environments (IP68).
Variety of Control Head Styles Available
All of our control head styles are available for electric propulsion applications, including ProGrade, Genesys, RSCH, and Side Mount controls. See below for more details.
Industry Leading Technology
Utilizes duel channel (Hall Effect) sensors for handle position measurement to ensure greater reliability and provide full protection from moistrue penetration.
In-Handle Trim Switch (Optional)
Handle mounted switch can be provided for outboard or sterdrive control
Single or Triple Detent Options
Choose neutral detent only or with detents at ahead ide, neutral and reverse idle positions.
Port or Starboard Handle Option
For single motor applications, control handle can be mounted on either the port or starboard side of control body.
Features
- Electronic Throttle / Electronic Shift
- Analog (voltage) or CAN signal output
- Programmable potentiometer for customizable throttle output
- Waterproff (IP68) construction
- Adjustable friction settings for throttle and shift detents
- Single or multi engine applications covered
- CE and UKCA certification
Factory Options
- 90 or 150 Handle Rotation options
- Number of detents available – 0 (no detents) / 1 (neutral only) / 3 (neutral, forward idle, reverse idle)
- Detent angle – 15 or 22.5 between neutral and forward/reverse idle
Control Head Options

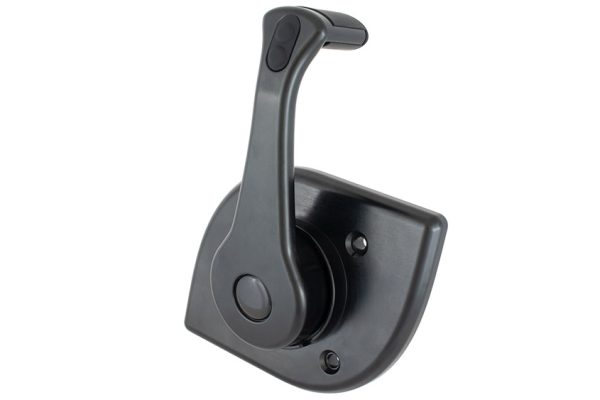

SM Control
- Optional trim switch in handle
- Cut-off kill switch
- Mechanical neutral interlock
- Available with chrome or black handle
- Available for either CAN or Analog output
Part numbers coming soon. Please inquire for more information.
Genesys
Featuring a sleek, modern design, Genesys offers the latest technology and is encapsulated in one of the most compact footprints on the market.
- Control switch in handle or keypad
- Customizable keypad design
- Available in chrome or black cover
- Available with “U” handle for single engine
- Availble for either black or chrome cover finish
| DURABILITY | Resists 300hr ASTM-B117 salt spray with no red rust |
| ENVIRONMENTAL | IP68 at 1m H2O with ports plugged |
| UV RATING | UV RESISTANT- 1000 hours |
| CERTIFICATIONS | Complies with the intent of EN60945:2002, IEC 60533:1999, ISO 25197:2013, and ABYC P-24:2013 |
| RoHS/REACH | Compliant |
| 1 DETENT – CANBUS OUTPUT | |
| 11420-SGEP1-UB | Genesys, Single, J1939, 1-detent, U-Handle, Black |
| 11420-SGEP1-UC | Genesys, Single, J1939, 1-detent, U-Handle, Chrome |
| 11420-TWEP1-UB | Genesys, Twin, J1939, 1-detent, Black |
| 11420-TWEP1-UC | Genesys, Twin, J1939, 1-detent, Chrome |
| 3 DETENT – CANBUS OUTPUT | |
| 11420-SGEP3-UB | Genesys, Single, J1939, 3-detent, U-Handle, Black |
| 11420-SGEP3-UC | Genesys, Single, J1939, 3-detent, U-Handle, Chrome |
| 11420-TWEP3-UB | Genesys, Twin, J1939, 3-detent, Black |
| 11420-TWEP3-UC | Genesys, Twin, J1939, 3-detent, Chrome |
Analog Output Part Numbers Coming Soon. Please inquire for more information.
ProGrade
CH2001 ProGrade offers industry leading technology and interfacing and is suitable for use in the worst environmental conditions.
- Control switch in handle or keypad
- Customizable keypad design
- Available for single or dual engine configurations
- Available for either CAN or Analog output application
| MATERIALS | Body and handles polished high quality stainless steel |
| DURABILITY | Resists 300hr ASTM-B117 salt spray with no red rust |
| ENVIRONMENTAL | IP68 at 1m H2O with ports plugged |
| UV RATING | UV RESISTANT- 1000 hours |
| CERTIFICATIONS | Complies with the intent of EN60945:2002, IEC 60533:1999, ISO 25197:2013, and ABYC P-24:2013 |
| RoHS/REACH | Compliant |
| 1 DETENT – CANBUS OUTPUT | |
| 11419-SGEP1-S2B | ProGrade, Single, J1939, Single Detent, STBD Handle, 2 Button |
| 11419-SGEP1-P2B | ProGrade, Single, J1939, Single Detent, PORT Handle, 2 Button |
| 11419-TWEP1-2B | ProGrade, Twin, J1939, Single Detent, 2 Button |
| 3 DETENT – CANBUS OUTPUT | |
| 11419-SGEP3-S2B | ProGrade, Single, J1939, Triple Detent, STBD Handle, 2 Button |
| 11419-SGEP3-P2B | ProGrade, Single, J1939, Triple Detent, PORT Handle, 2 Button |
| 11419-TWEP3-2B | ProGrade, Twin, J1939, Triple Detent, 2 Button |
| 1 DETENT – ANALOG OUTPUT | |
| 11419-SGAN1-S | ProGrade, Single (STBD) Analog Output, 1 detent |
| 11419-SGAN1-P | ProGrade, Single (PORT) Analog Output, 1 detent |
| 11419-TWAN1 | ProGrade, Twin, Analog Output, 1 detent |
| 3 DETENT – ANALOG OUTPUT | |
| 11419-SGAN3-S | ProGrade, Single (STBD) Analog Output, 3 detent |
| 11419-SGAN3-P | ProGrade, Single (PORT) Analog Output, 3 detent |
| 11419-TWAN3 | ProGrade, Twin, Analog Output, 3 detent |
RSCH
RSCH Top Mount Control Head is designed for commerical applications requiring a compact and robust solution.
- Available with or without baseplate keypad
- Available for single or dual handle configurations
- Available for either CAN or Analog output application
| DURABILITY | Resists 300hr ASTM-B117 salt spray with no red rust |
| ENVIRONMENTAL | IP68 at 1m H2O with ports plugged |
| UV RATING | UV RESISTANT- 1000 hours |
| CERTIFICATIONS | Complies with the intent of EN60945:2002, IEC 60533:1999, ISO 25197:2013, and ABYC P-24:2013 |
| RoHS/REACH | Compliant |
Part numbers coming soon. Please inquire for more information.
Analog Output
For electric propulsion motors requiring voltage based signals and for users wanting basic control functionality.
All values custom set as required.
| Single Station / Basic Functions | Designed for non-complex, simple applications where additional features such as drive train synchronization, LED indicators, station transfer, etc. are not required (See J1939 control output for these features and more). |
| Signal Output | 0.5 – 4.5 VDC linear output from full astern to full ahead |
| Electrical Specifications | +5.0 VDC power supply (to be provided by user). 5ma max output load (1 Kohm impendence). |
J1939 CANbus Output
Full feature, J1939 CANbus output for electric propulsion applications.
Most common protocols covered.
| Multi-Function / Multi-Station | J1939 CANbus communication allowing full feature control and including drive train synchronization, LED indicators, station transfer, etc. |
| Voltage (Power Supply) | 10-36 VDC |
| Current (Power Supply) | 250ma |
| CANbus Protocol | J1939 |
| CANbus Connection (Physical Layer) | Complies with Devicenet (male pins) |
| Control Outputs (Parameter group numbers) | Shift Control: PGN 61445 (ETC2) |
| Throttle Control: PGN 61443 (EEC2) | |
| Trim Control: PGN 65288 (Prop) |
